How can I check the current limits of the project I am working on in the HELIO IDE?

License limits can be checked within the IDE in the following places:

Project Count

The Maximum Number of Projects can be determined from within the Home Page of the HELIO IDE:

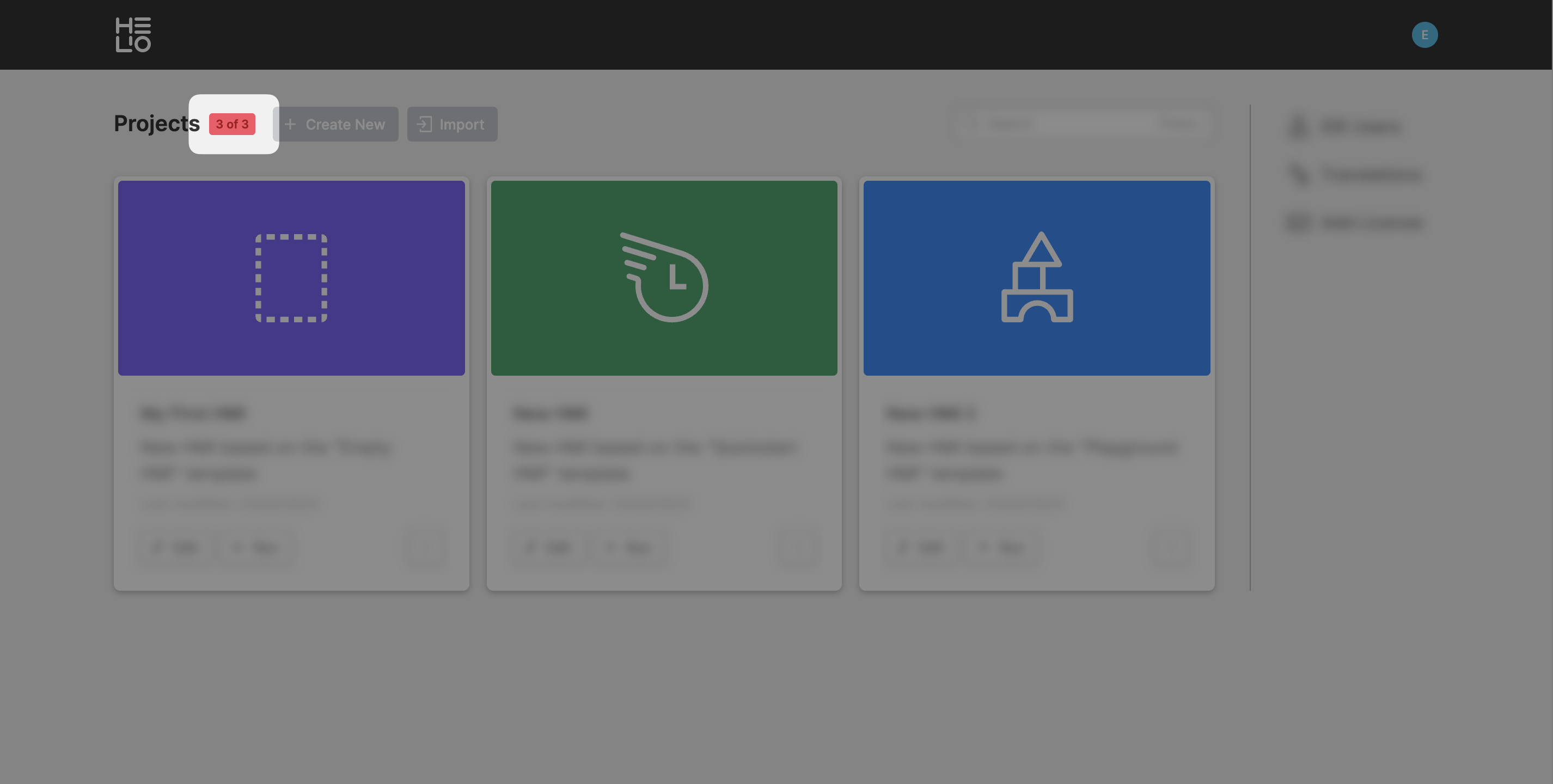

Project limit on a target device equipped with a Runtime License S:

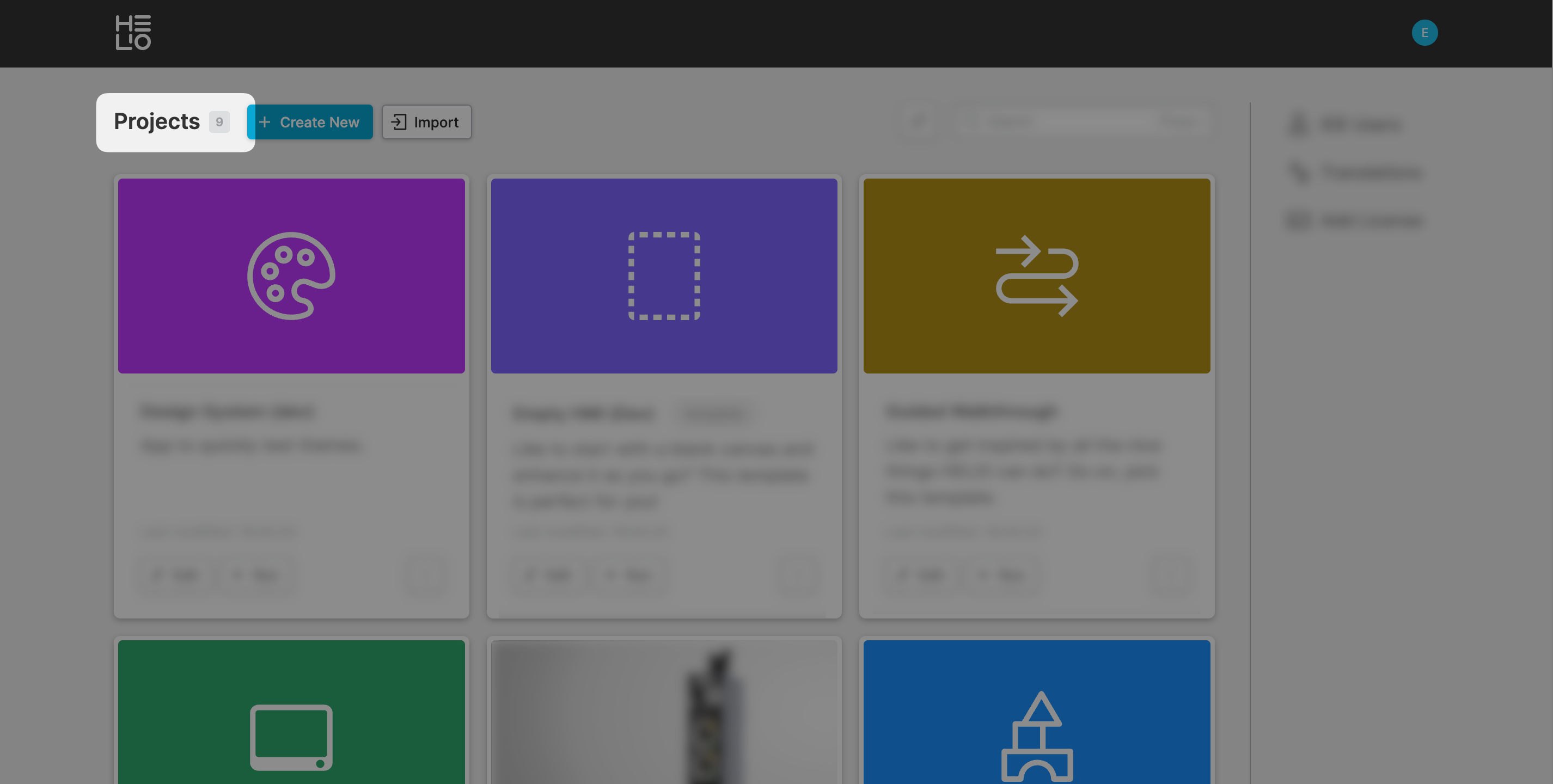

Project limit on a dev machine equipped with a Developer License:

Variable Count

Open your project using the Project Editor and navigate to the Data View. You can find both, the count of data sources as well as variables at the top the Data Source Explorer and HMI Data Explorer.

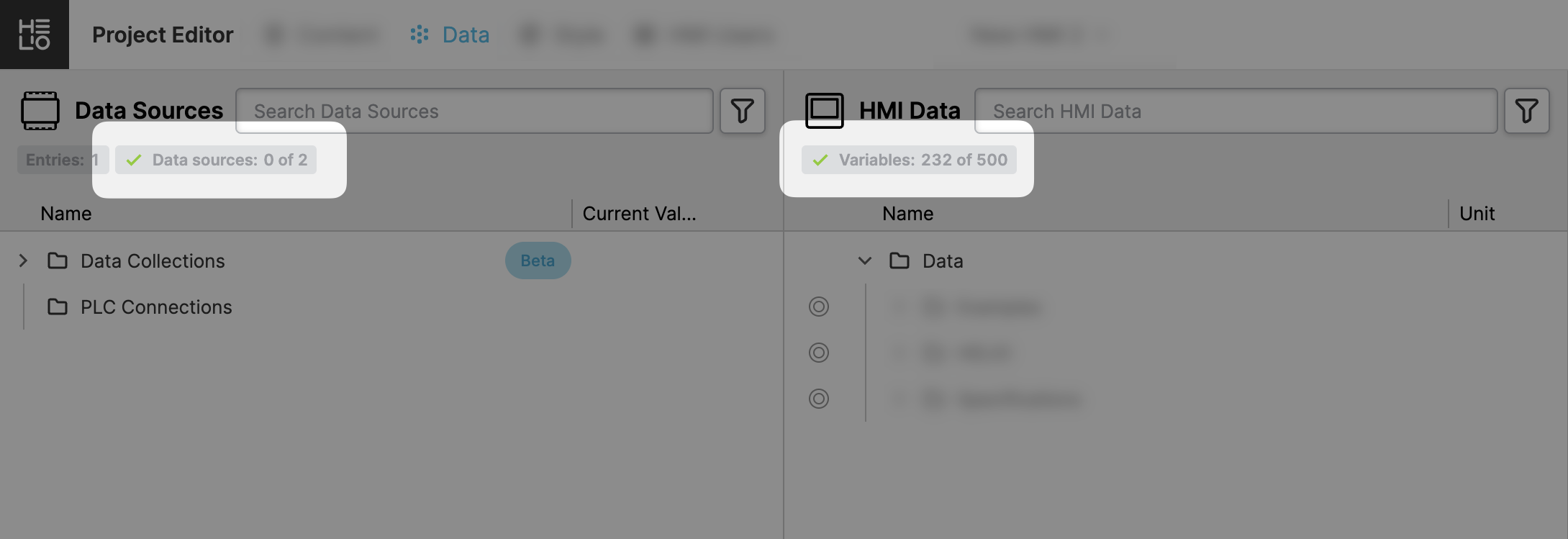

Variable limit on a target device equipped with a Runtime License S:

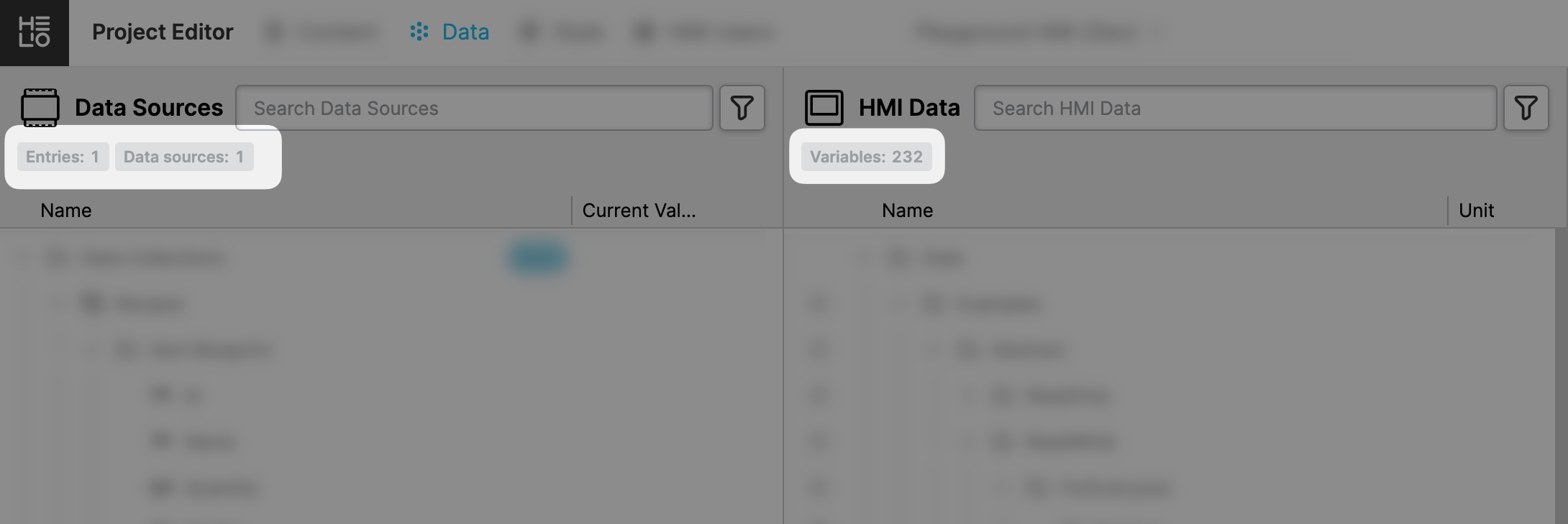

Variable limit on a dev machine equipped with a Developer License:
